Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver airbag module.
(Refer to DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel front cover (A) after loosening the screws.

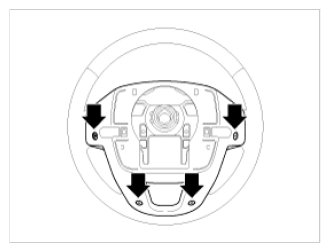

Fig 1: Locating Steering Wheel Front Cover Screws
Courtesy of KIA MOTORS AMERICA, INC.

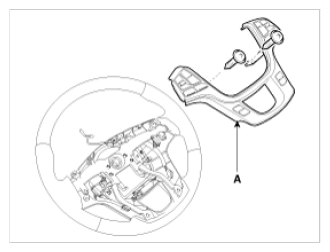

Fig 2: Identifying Steering Wheel Front Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the audio remote control switch connector (A).

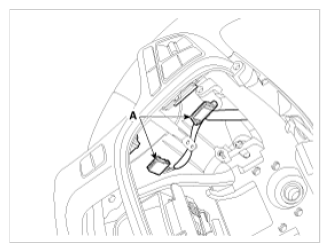

Fig 3: Identifying Audio Remote Control Switch Connector (RH)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Identifying Audio Remote Control Switch Connector (LH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio remote control switch (A).

Fig 5: Identifying Audio Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.
