Repair Procedures: Inspection
WARNING: This page is about a different car, the 2014 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

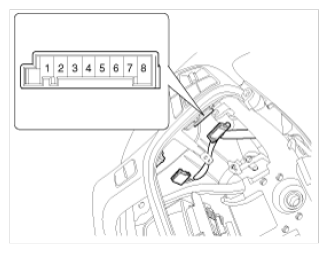

- Check for resistance between No. 2 and No. 7 terminals in each switch position.
Courtesy of KIA MOTORS AMERICA, INC. AUDIO SYSTEM RESISTANCE SPECIFICATIONS
| Switch |
Connector terminal |
Resistance (±1%) |
| Volume Down |
2-7 |
6.81 kΩ |
| Volume Up |
2-7 |
4.61 kΩ |
| MUTE |
2-7 |
3.11 kΩ |
| Mode |
2-7 |
2.11 kΩ |
| Seek Down |
2-7 |
1.1 kΩ |
| Seek Up |
2-7 |
430 Ω |
