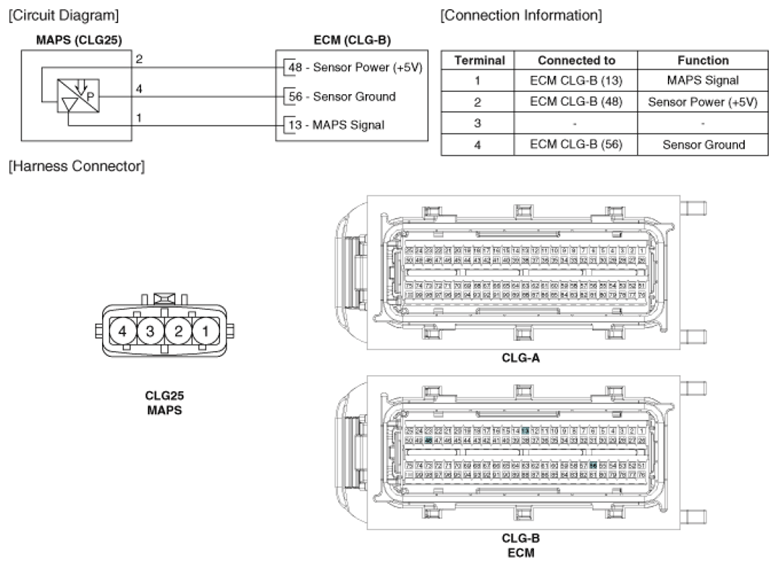

Home >> Kia >> 2012 >> Sorento SX, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.5L >> Manifold Absolute Pressure Sensor (MAPS) >> Schematic Diagrams >> Circuit Diagram
