Audio Assembly Replacement

Remove the floor console upper cover (A).

Fig 1: Identifying Floor Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center fascia lower panel (A).

Fig 2: Identifying Center Fascia Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.

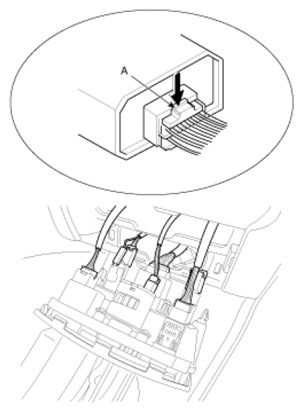

Push the lock pin (A), disconnect the connectors.

Fig 3: Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the center fascia panel (A).

Fig 4: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Push the lock pin, disconnect the connector (A).

Fig 5: Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the heater control unit (A).

Fig 6: Identifying Heater Control Unit
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the audio assembly (A).

Fig 7: Identifying Audio Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Push the lock pin (A), disconnect the connectors.

Fig 8: Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse the removal.
