Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

   YES

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to CAN communication circuit inspection procedure.

■ CAN communication circuit inspection (VDC ECM ↔ 4WD ECM)

1. Ignition "OFF"
2. Disconnect 4WD ECM connector and VDC ECM connector
3. Measure the resistance between CAN-HIGH terminal of 4WD ECM harness connector and CAN-HIGH terminal of VDC ECM harness connector.
4. Measure the resistance between CAN-LOW terminal of 4WD ECM harness connector and CAN-LOW terminal of VDC ECM harness connector.

   Specification :  below 1Ω

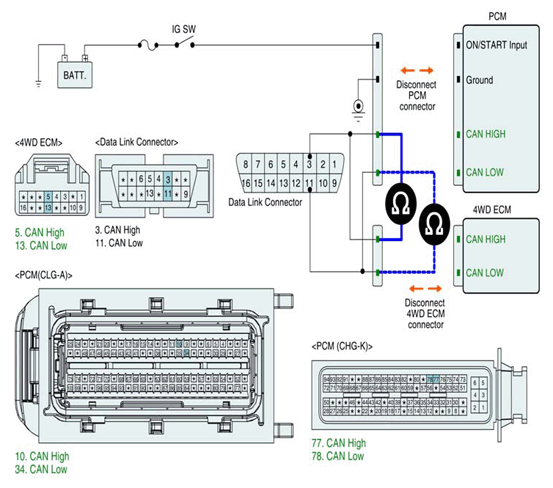

   Fig 1: Measuring Resistance Between CAN-HIGH Terminal Of 4WD ECM And CAN-HIGH Terminal Of VDC ECM Harness Connector

   Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured resistance within specification?

   YES

   • Substitute with a known - good ECM and check for proper operation. If the problem is corrected, replace ECM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Check for open/short in harness.
   • Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
