Component Inspection

■ Check EMC

1. IG KEY OFF.
2. Disconnect EMC connector.
3. Measure resistance between EMC (+) terminal and EMC (-) terminal of EMC connector. (Components side)

   Specification :  About 2~2.6 Ω (at 23°C)

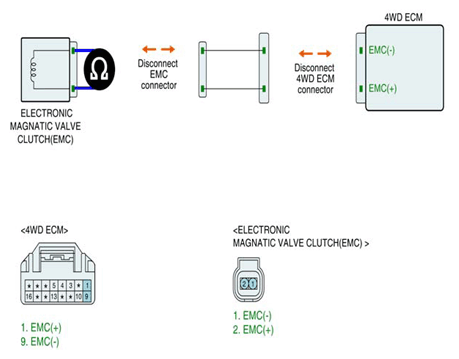

   Fig 1: Measuring Resistance Between EMC (+) Terminal And EMC (-) Terminal Of EMC Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured value within specification?

   YES

   • Check 4WD ECM connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Substitute with a known good EMC and check for proper operation.

     If the problem is corrected, replace EMC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
