Ignition Coil

Remove the engine cover.
Remove the surge tank. [RH only] (Refer to INTAKE AND EXHAUST SYSTEM )
Disconnect the ignition coil connector (A).

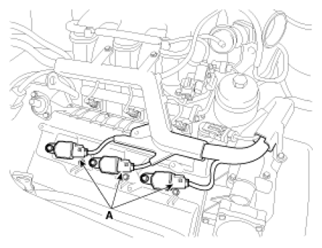

Fig 1: Identifying Ignition Coil Connector
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:
When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Fig 2: Pulling Lock Pin And Clip
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (A).

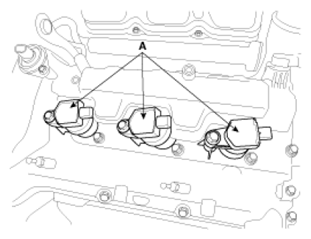

Fig 3: Identifying Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
