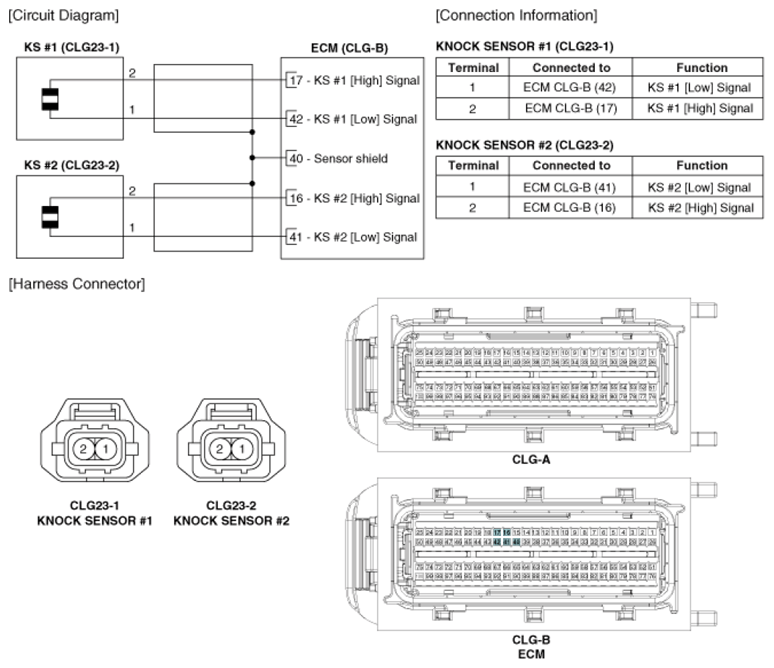

Home >> Kia >> 2012 >> Sorento SX, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.5L >> Knock Sensor (KS) >> Schematic Diagrams >> Circuit Diagram
