Console Assembly Replacement: [M/T]

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the console under cover (A).

Fig 1: Identifying Console Under
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the console rear cover (A).

Fig 2: Identifying Console Rear Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 3: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the extension side cover (A).

Fig 4: Identifying Extension Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the console tray mat (A).

Fig 5: Identifying Console Tray Mat
Courtesy of KIA MOTORS AMERICA, INC.

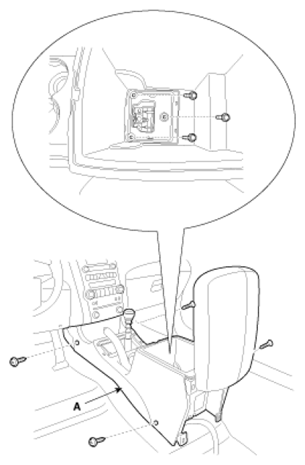

After loosening the mounting bolts and screws, then remove the console assembly (A).

Fig 6: Identifying Console Assembly Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
