Components and Components Location: Components

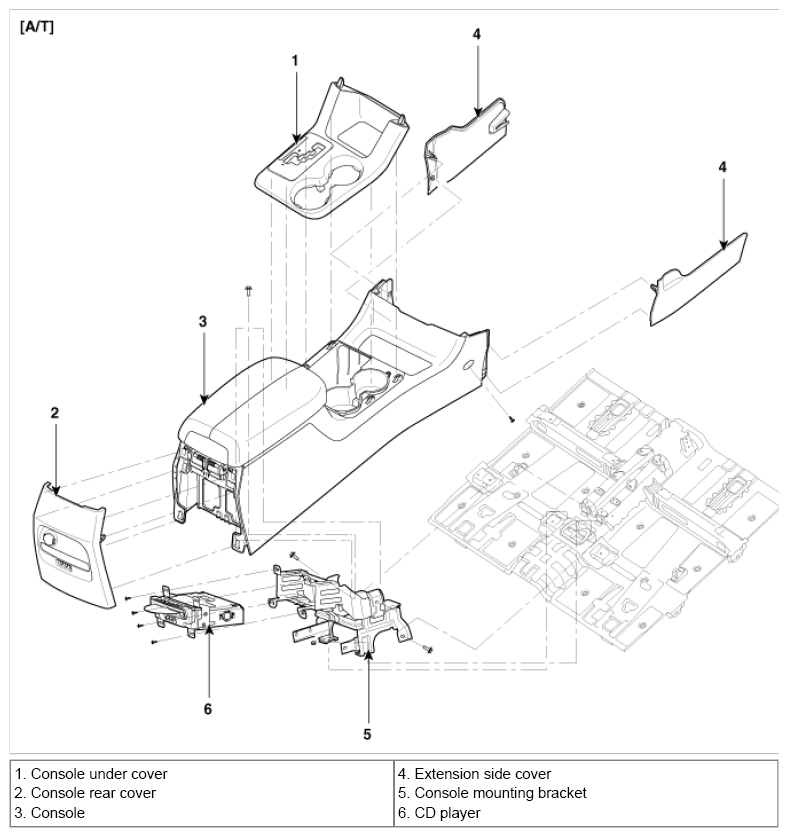

Fig 1: Exploded View Of Console (A/T)

G07416210

Courtesy of KIA MOTORS AMERICA, INC.

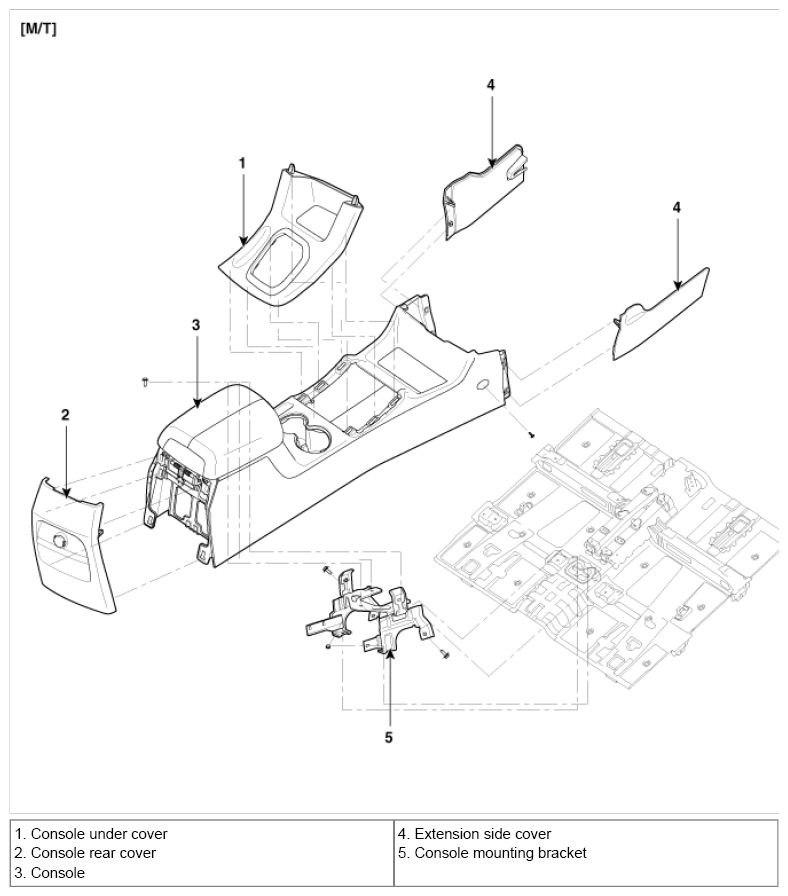

Fig 2: Exploded View Of Console (M/T)

G07416211

Courtesy of KIA MOTORS AMERICA, INC.
