Monitor Scantool Data

  1. IG KEY "ON" & Engine "OFF".
  2. Erase DTC after connecting GDS.
  3. Check Smart key status if DTC is retrieved.

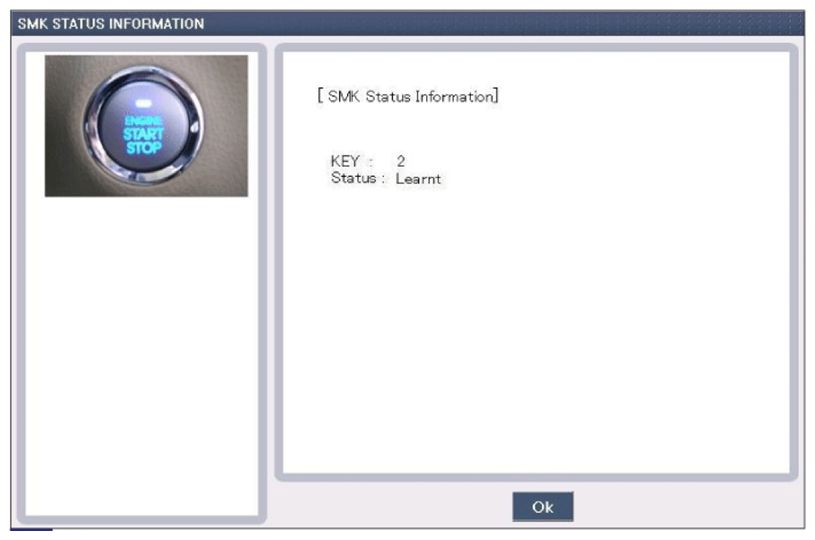

    Fig 1: Screen Display - SMK Status Information
    G07417311Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the Smart key ECM learnt status?

    YES

    Fault is intermittent caused by poor contact in Smart key ECM and/or ECM's connector or was repaired and Smart key ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "COMPONENT INSPECTION " procedure.
