Engine Control System - 2.4L GDI
>>
Engine Control Module (ECM) (VIN 6)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

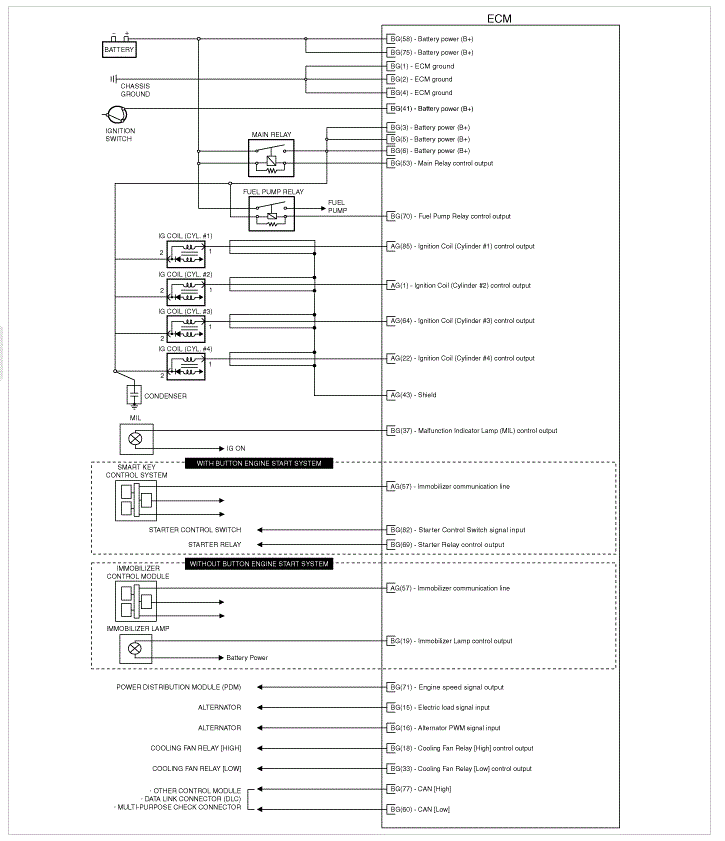

Fig 1: Engine Control System Circuit (1 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.

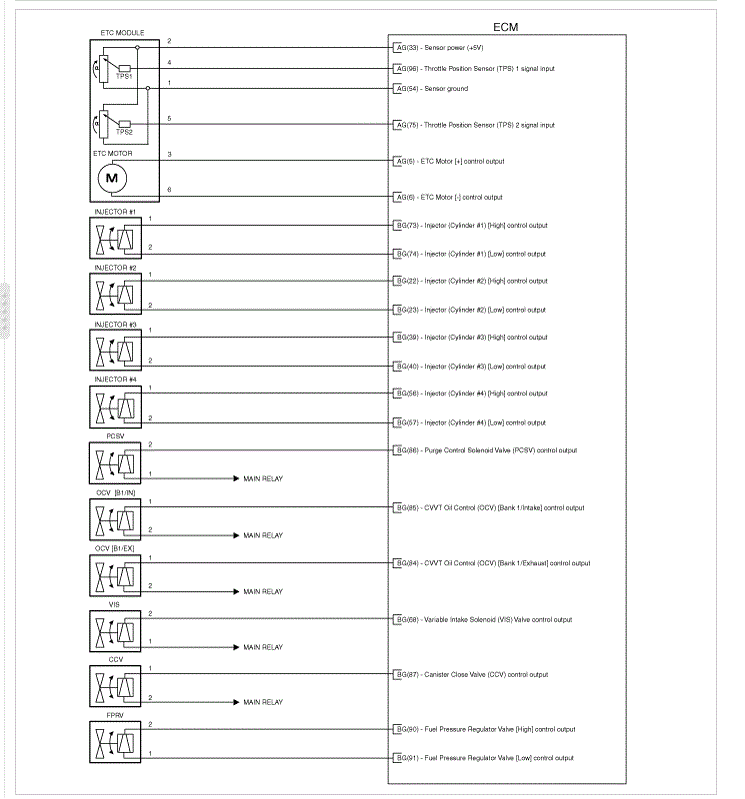

Fig 2: Engine Control System Circuit (2 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.

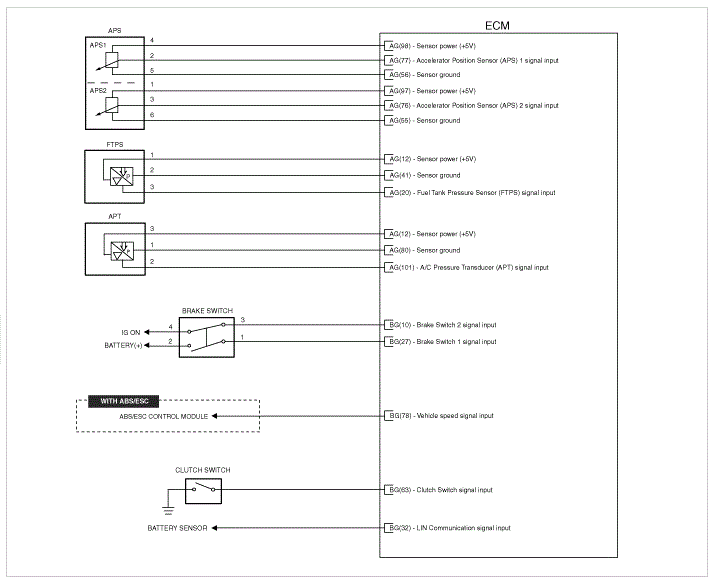

Fig 3: Engine Control System Circuit (3 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.

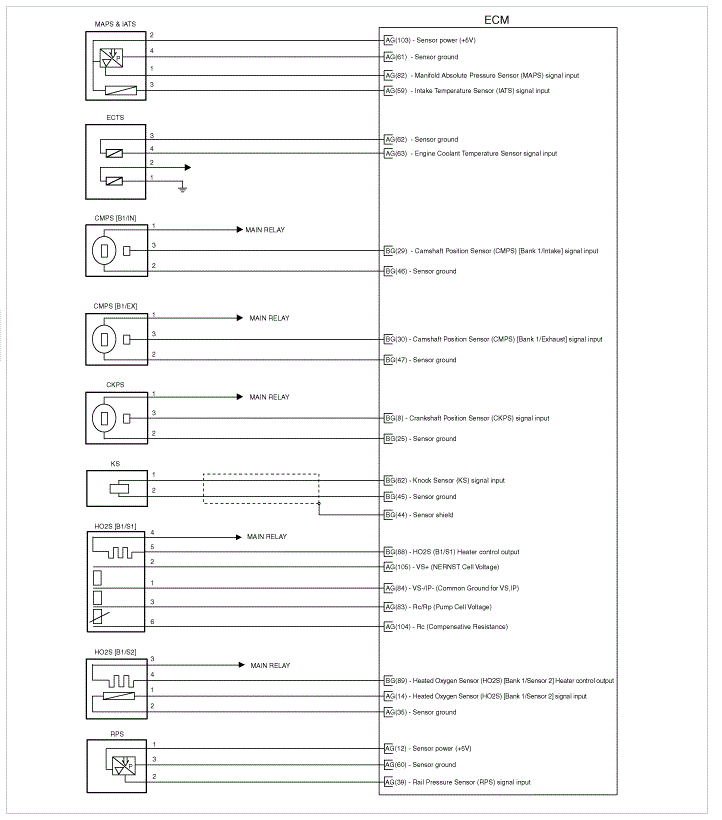

Fig 4: Engine Control System Circuit (4 Of 4) (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
