Repair Procedures: Replacement

[Driver's side]

1. Disconnect the negative (-) battery terminal.
2. Using a screwdriver or remover, remove the driver's side crash pad side cover.
   Fig 1: Identifying Driver's Crash Pad Side Cover

   Courtesy of KIA MOTORS AMERICA, INC.

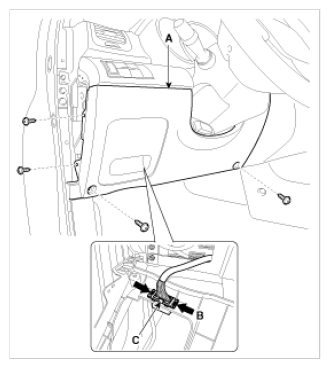

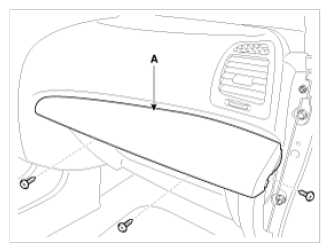

3. After loosening the mounting screws, remove the crash pad lower panel (A).
4. Push the lock pin (B), disconnect the diagnosis connector (C).
   Fig 2: Locating Lock Pin And Diagnosis Connector

   Courtesy of KIA MOTORS AMERICA, INC.

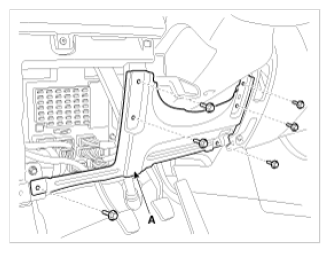

5. After loosening the mounting bolts, then remove the reinforce panel (A).
   Fig 3: Identifying Reinforce Panel

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove the driver's side shower duct after loosening the screw.

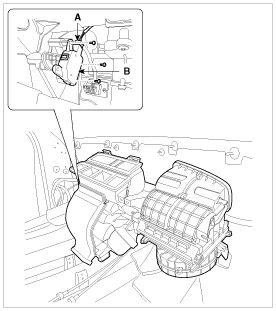

7. Disconnect the temperature control actuator connector (A).
8. Remove the temperature control actuator (B) after loosening the mounting screws.
   Fig 4: Identifying Temperature Control Actuator And Connector

   Courtesy of KIA MOTORS AMERICA, INC.
9. Install in the reverse order of removal.

[Passenger's side]

1. Disconnect the negative (-) battery terminal.
2. Remove the cowl side trim.

   (Refer to "CRASH PAD ")

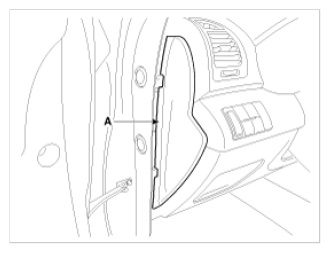

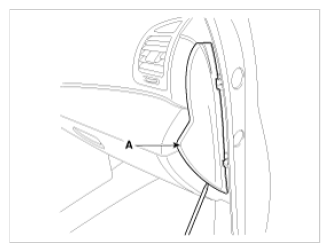

3. Using a screwdriver or remover, remove the crash pad side cover (A).
   Fig 5: Identifying Crash Pad Side Cover

   Courtesy of KIA MOTORS AMERICA, INC.

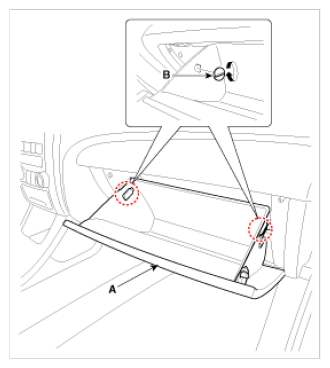

4. Disconnect the stopper (B) from the glove box (A).
   Fig 6: Identifying Stopper From Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.
5. Disconnect the air damper (A) from the glove box (B).
   Fig 7: Locating Air Damper

   Courtesy of KIA MOTORS AMERICA, INC.

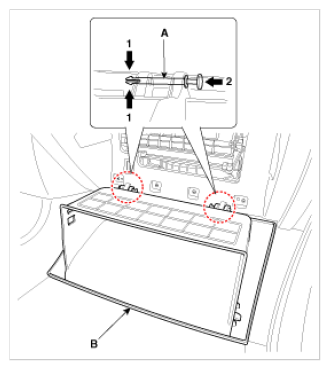

6. Disconnect the pins (A) and then remove the glove box (B).
   Fig 8: Locating Pins And Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.
7. After loosening the mounting screws, then remove the crash pad side garnish [RH] (A).
   Fig 9: Identifying Crash Pad Side Garnish (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

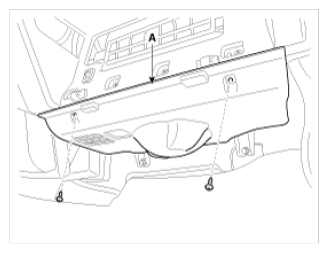

8. After loosening the mounting screws, then remove the crash pad under cover (A).
   Fig 10: Identifying Crash Pad Under Cover

   Courtesy of KIA MOTORS AMERICA, INC.

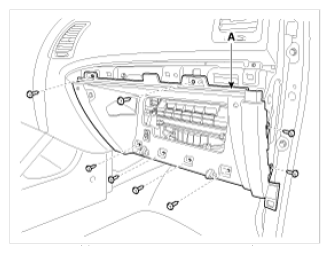

9. After loosening the mounting screws, then remove the glove box housing (A).
   Fig 11: Identifying Glove Box Housing

   Courtesy of KIA MOTORS AMERICA, INC.

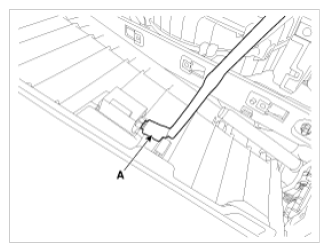

10. Disconnect the glove box lamp connector (A).
    Fig 12: Identifying Glove Box Lamp Connector

    Courtesy of KIA MOTORS AMERICA, INC.

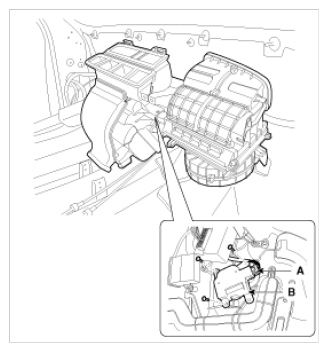

11. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    Fig 13: Identifying Temperature Control Actuator And Connector

    Courtesy of KIA MOTORS AMERICA, INC.
12. Install in the reverse order of removal.
