WARNING: This page is about a different car, the 2014 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

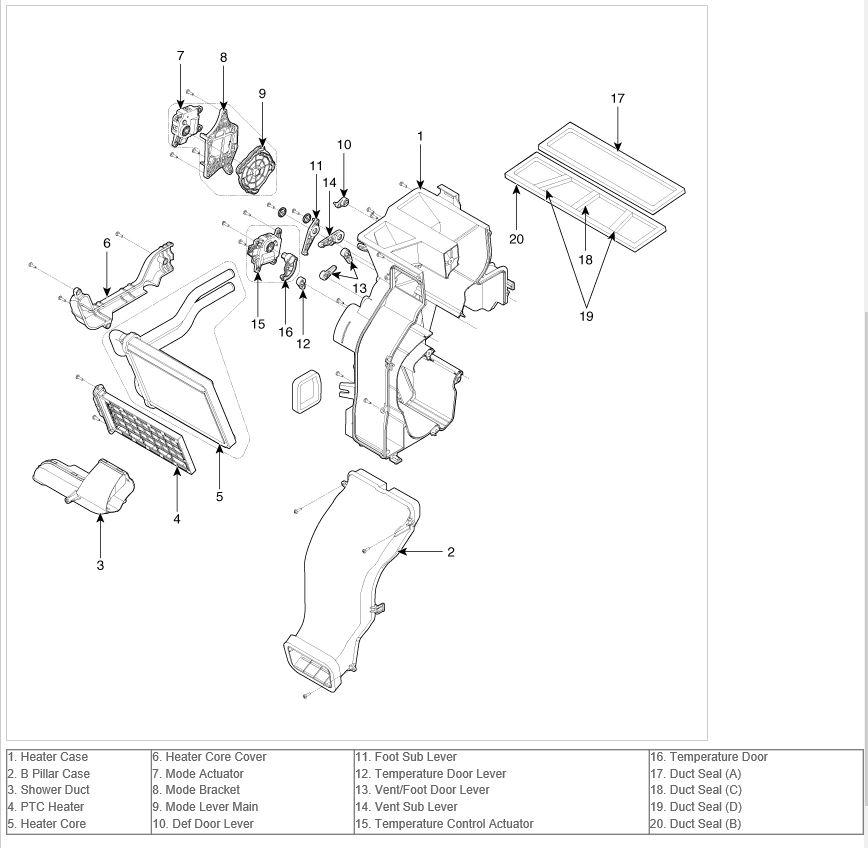

Fig 1: Identifying Heater Unit Related Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

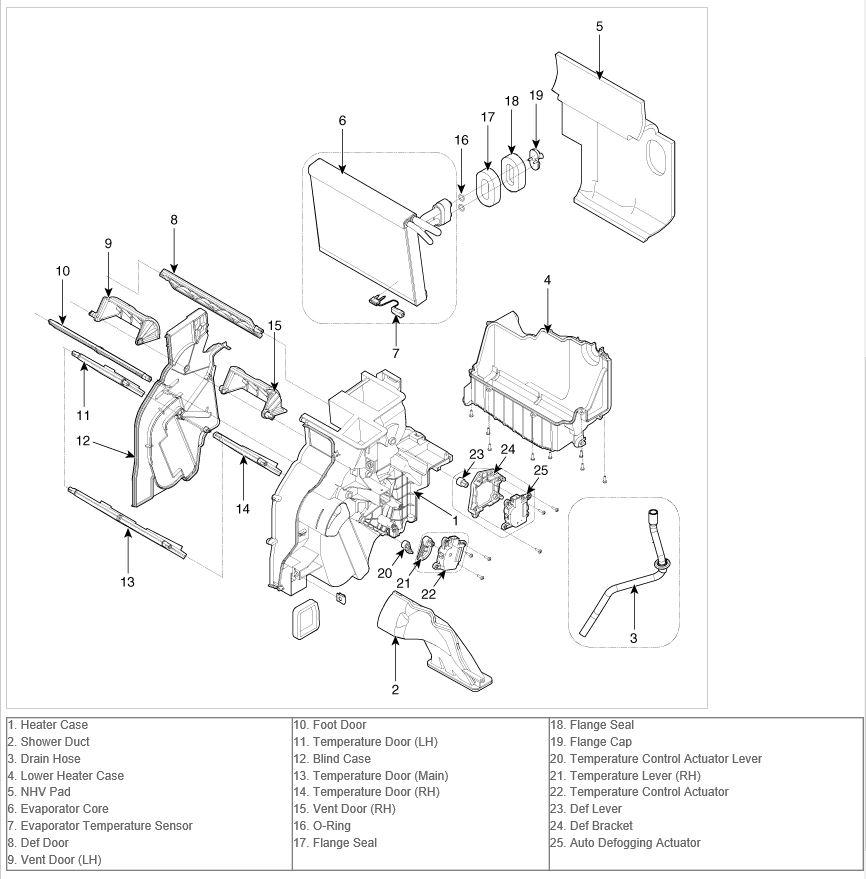

Fig 2: Identifying Heater Unit Related Components (2 Of 2)
