Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering column upper and lower shrouds (A) after removing 3 screws.

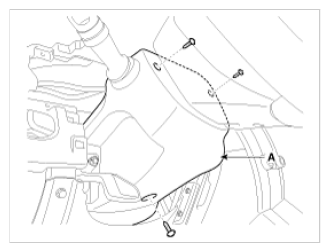

Fig 1: Identifying Steering Column Upper And Lower Shrouds
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the light switch connector (A) and the wiper switch connector (B).

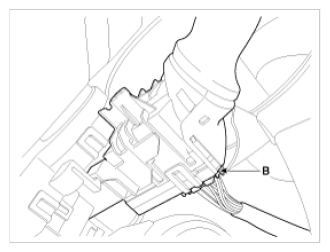

Fig 2: Identifying Light Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

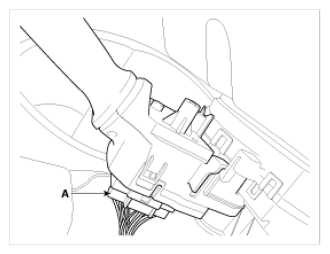

Fig 3: Identifying Wiper Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wiper switch (A) by pushing the lock pin (B).
NOTE: When removing the wiper & washer switch only, release the lock of wiper switch without removing the steering wheel.

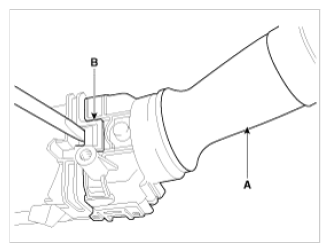

Fig 4: Pushing Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering wheel.
(Refer to "STEERING WHEEL ")
Remove the clock spring.
(Refer to "AIRBAG MODULES & CLOCK SPRING ")
Loosen the screws from the multifunction switch assembly (A).

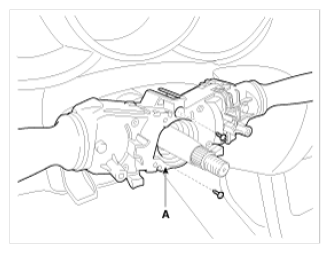

Fig 5: Identifying Multifunction Switch Assembly
