System Charging
WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning system.
CAUTION:
- Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
- Be careful when connecting service equipment.
- Do not breathe refrigerant or vapor.
If accidental system discharge occurs, ventilate the work area before resume of service.
Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

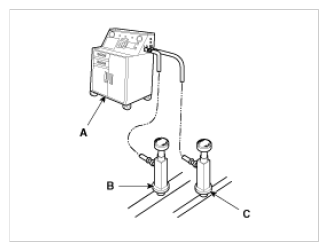

- Connect a R-134a refrigerant
Recovery/Recycling/Charging system (A) to the high-pressure service port (B) as shown in illustration, following the equipment manufacturer's instructions.
- Add the same amount of new refrigerant oil to the system that was removed during recovery. Use only specified refrigerant oil. Charge the system with [Front only: 600±25g (21.1±0.88oz.), Front & Rear: 750±25g (26.4±0.88oz.)] R-134a refrigerant. Do not overcharge the system the compressor will be damaged.
