Refrigerant Recovery

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning system.

CAUTION:

Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.
Be careful when connecting service equipment.
Do not breathe refrigerant or vapor.

If accidental system discharge occurs, ventilate the work area before resume of service.

Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

Connect a R-134a refrigerant
Recovery/Recycling/Charging system (A) to the high-pressure service port (C) and the low-pressure service port (B) as shown in illustrations, following the equipment manufacturer's instructions.

Fig 1: High-Pressure Service Port
Courtesy of KIA MOTORS AMERICA, INC.

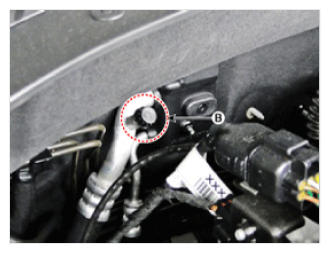

Fig 2: Low-Pressure Service Port
Courtesy of KIA MOTORS AMERICA, INC.

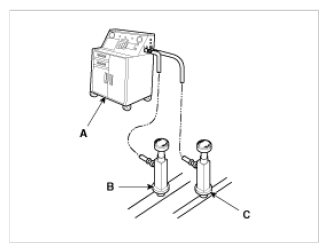

Fig 3: Recovery/Recycling System And High/Low Pressure Service Port
Courtesy of KIA MOTORS AMERICA, INC.
Measure the amount of refrigerant oil removed from the A/C system after the recovery process is completed. Be sure to install the same amount of new refrigerant oil back into the A/C system before charging.
