Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant with a recovery/recycling/charging station.
  2. Disconnect the negative (-) battery terminal.
  3. Remove the front bumper.

    (Refer to "FRONT BUMPER ")

  4. Remove the air duct (A).

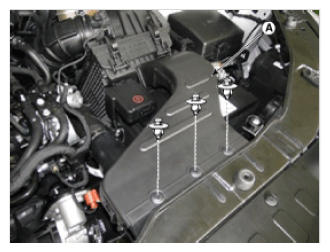

    Fig 1: Air Duct Of Front Bumper
    G09767573Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the 2 nuts, and then disconnect the discharge line and liquid line (A) from the condenser.

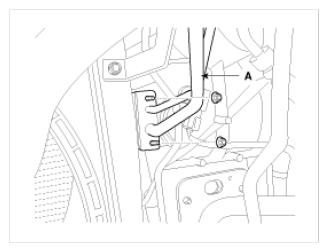

    Fig 2: Discharge And Liquid Line From Condenser
    G09767574Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the side air guard (A).

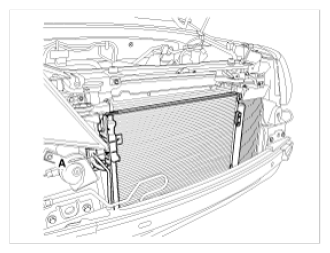

    Fig 3: Side Air Guard
    G09767575Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the condenser (A) from radiator.

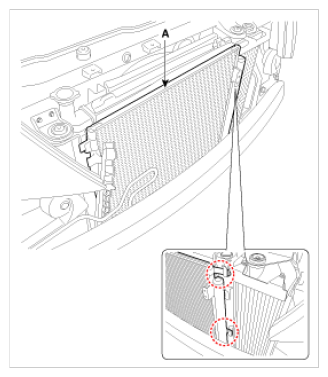

    Fig 4: Condenser From Radiator
    G09767576Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
    NOTE:
    • If you're installing a new condenser, add refrigerant oil.
    • Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
    • Be careful not to damage the radiator and condenser fins when installing the condenser.
    • Charge the system, and test its performance.
