Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

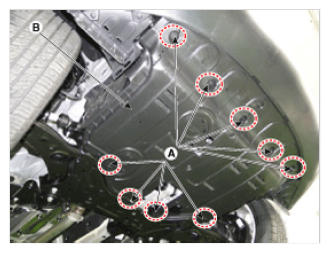

Remove the engine room under cover by loosening the mounting clip (A) and bolts (B).

Fig 1: Engine Room Under Cover Mounting Clip And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Separate the front portion of the front wheel guard from the wheel base.
(Refer to BODY SIDE MOULDING ")

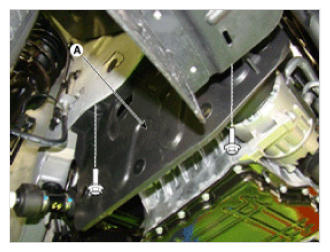

Remove the engine room right side cover.

Fig 2: Engine Room Right Side Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the drive belt.
(Refer to "DRIVE BELT for 2.4L, and DRIVE BELT for 3.3L")

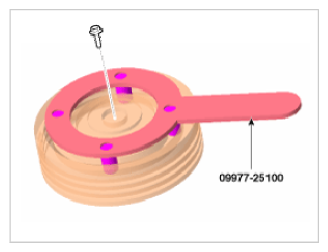

Remove the center bolt (A) while holding the pulley with a disc & hub bolt remover (09977-25100).

Fig 3: Removing Center Bolt And Disc/Hub Bolt
Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

15 ~ 21 N.m (1.5 ~ 2.1 kgf.m, 11.1 ~ 15.5 lb-ft)

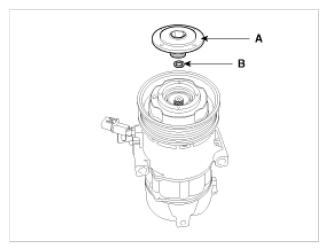

Loossen the hub bolts and then remove the hub assembly.

Fig 4: Bolts Of Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

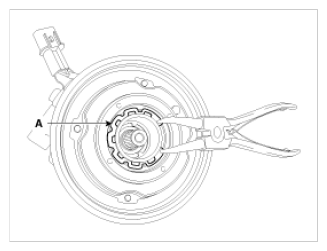

Remove the pulley (B) after removing the snap ring (A) with a snap ring plier.

Fig 5: Removing Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

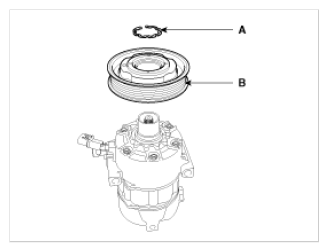

Fig 6: Snap Ring And Pulley
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Be careful not to damage the pulley and compressor during disassembly/reassembly.
- Once the snap ring is removed, replace it with a new one.
Reassemble in the reverse order of disassembly.
NOTE:
- Clean the pulley and compressor sliding surfaces with non-petroleum solvent.
- Install a new snap ring, and make sure they are fully seated in the groove.
- Make sure that the pulley turns smoothly after reassembly.
