Engine Room

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

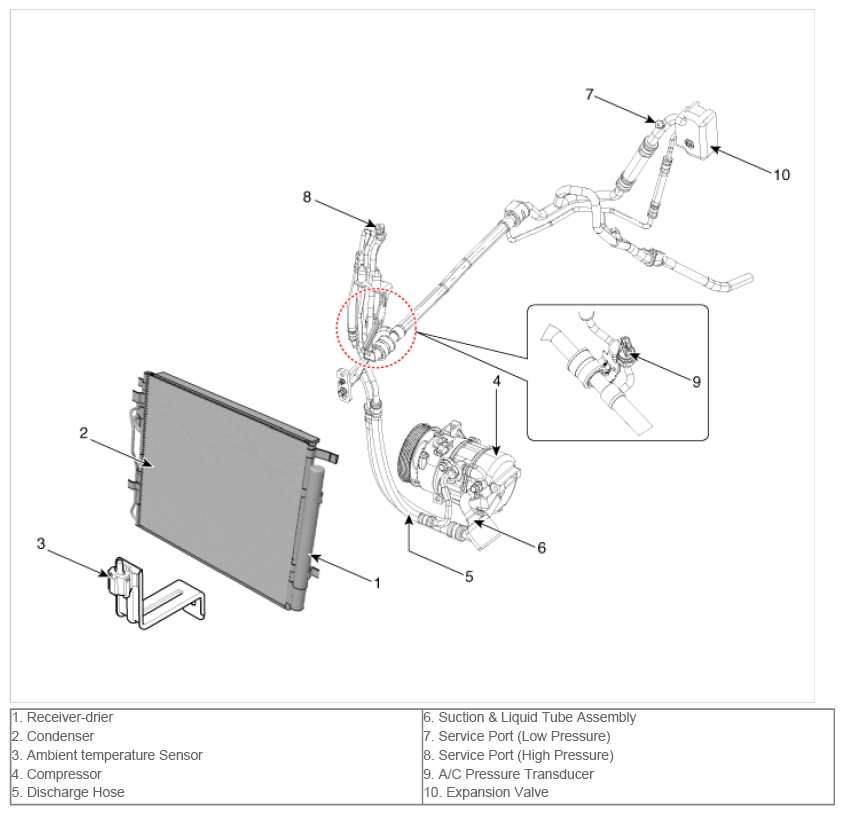

Fig 1: Air Conditioning System Components (Engine Room)
G09767548Courtesy of KIA MOTORS AMERICA, INC.
