Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to "FRONT BUMPER ")

  3. Disconnect the connector (B) and then remove the ambient temperature sensor (A).

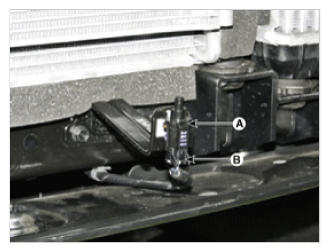

    Fig 1: Ambient Temperature Sensor And Connector
    G09767594Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
