Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Lift the vehicle.
Disconnect the canister close valve connector (A).
Disconnect the ventilation tube quick-connector (B) from the fuel tank air filter and canister close valve.

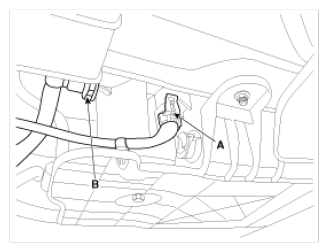

Fig 1: Ventilation Tube Quick-Connector And Canister Close Valve Connector (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the vapor tube quick-connector (A).
Remove the canister assembly bracket (D) after removing the mounting bolts (B) and nut (C).

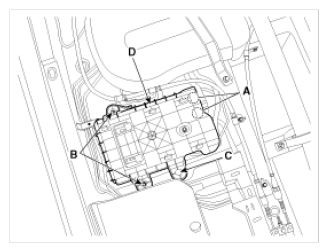

Fig 2: Vapor Tube Quick-Connector (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the canister bracket (B) installation bolt (A).

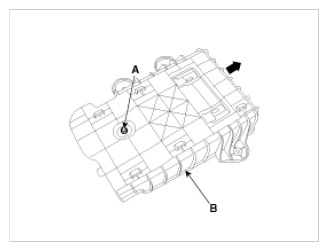

Fig 3: Removing Canister Bracket (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank air filter & canister close valve assembly (A) after rotating it in the direction of the arrow in the figure.

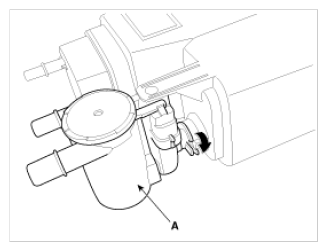

Fig 4: Removing Fuel Tank Air Filter And Canister Close Valve Component Location (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.

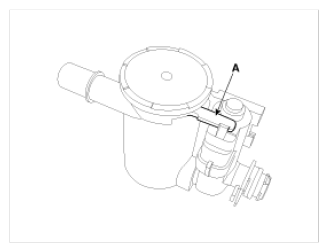

Fig 5: Lever (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.

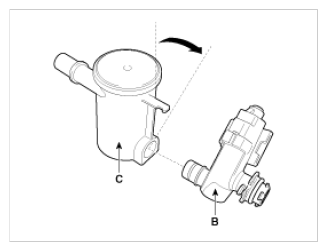

Fig 6: Separating Canister Close Valve From Fuel Tank Air Filter (VIN 6)
Courtesy of KIA MOTORS AMERICA, INC.
