Repair procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel. (Refer to CRASH PAD )
  3. Remove the lower crash pad switch assembly (A) after loosening the screws and then disconnect the connectors.
    Fig 1: Identifying Lower Crash Pad Switch Assembly
    G07416095Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.

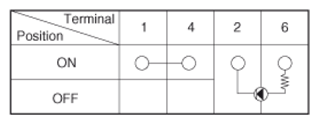

    Fig 2: Terminals Continuity Chart
    G07416096Courtesy of KIA MOTORS AMERICA, INC.
