DTC B1630: LIN error: General Description: General Description
This is DTC which is related with communication error between PDM and other units.

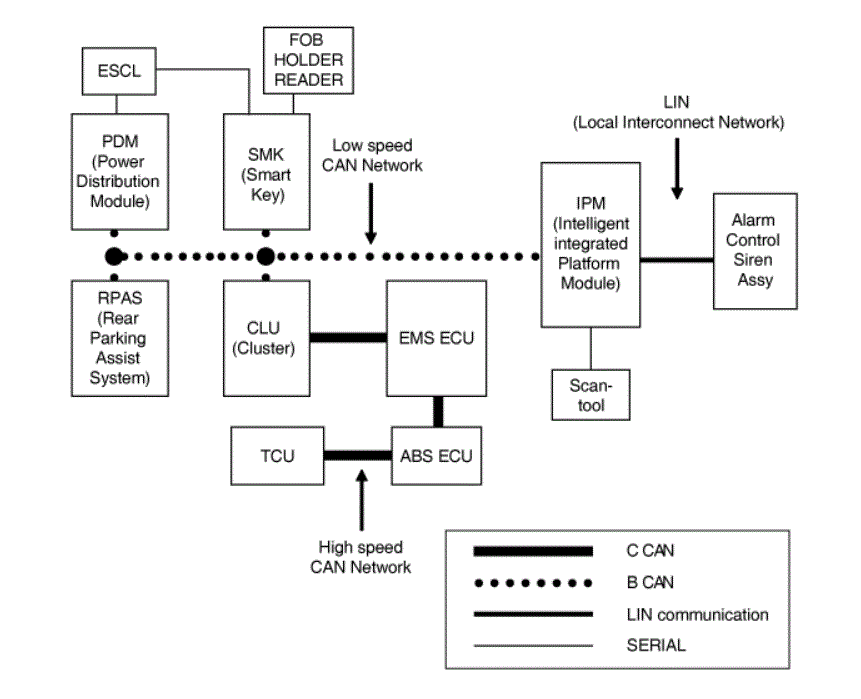

* Body CAN communication Control Units : IPM (Intelligent integrated Platform Module), CLU (Cluster), PDM (Power Distribution Module), SMK (Smart Key), RPAS (Rear Parking Assist System).
*1 CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.
*2 LIN (Local Interconnect Network) : LIN is serial communication type which is used in electrical control system. (This is less expensive.)
