General Information: General Description

This is DTC which is related with communication error between PDM and other units.

* Body CAN communication Control Units : IPM (Intelligent integrated Platform Module), CLU (Cluster), PDM (Power Distribution Module), SMK (Smart Key), RPAS (Rear Parking Assist System).

^*1 CAN (Controller Area Network) : CAN is serial bus communication type which links not only communication system but also control units each other.

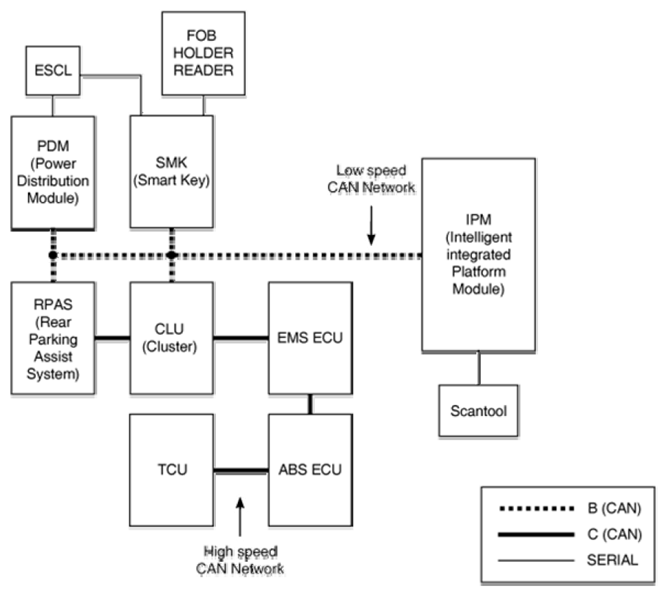

Fig 1: CAN Communication Diagram

Courtesy of KIA MOTORS AMERICA, INC.
