Components And Components Location: Components

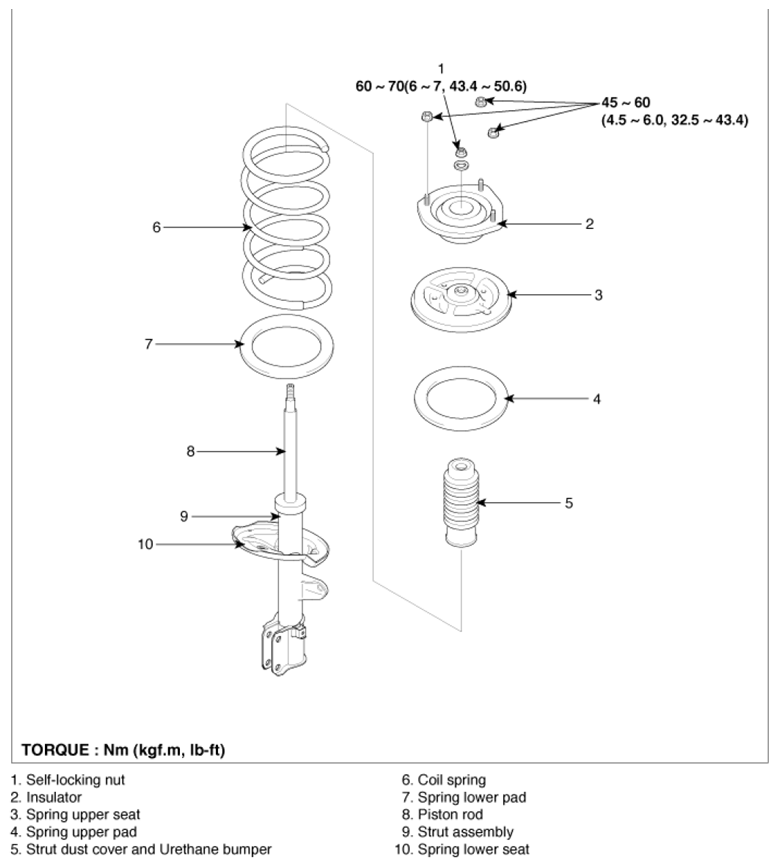

Fig 1: Exploded View Of Front Strut Assembly With Torque Specifications

G07389159

Courtesy of KIA MOTORS AMERICA, INC.
