Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait at least three minutes before beginning work.
  2. Remove the airbag module mounting bolts.

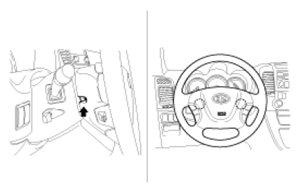

    Fig 1: Locating Airbag Module Mounting Bolts
    G07389411Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the horn connector (A).
    Fig 2: Identifying Horn Connector
    G07389412Courtesy of KIA MOTORS AMERICA, INC.
  4. Release the connector locking pin (B), then disconnect the driver airbag module connector (C).
    CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
  5. Remove the steering wheel and steering wheel column cover. Refer to STEERING COLUMN-SHAFT .
  6. Disconnect the clock spring and horn connector, then remove the clock spring.
Fig 3: Clock Spring
G07389413Courtesy of KIA MOTORS AMERICA, INC.
