Components And Components Location: Components

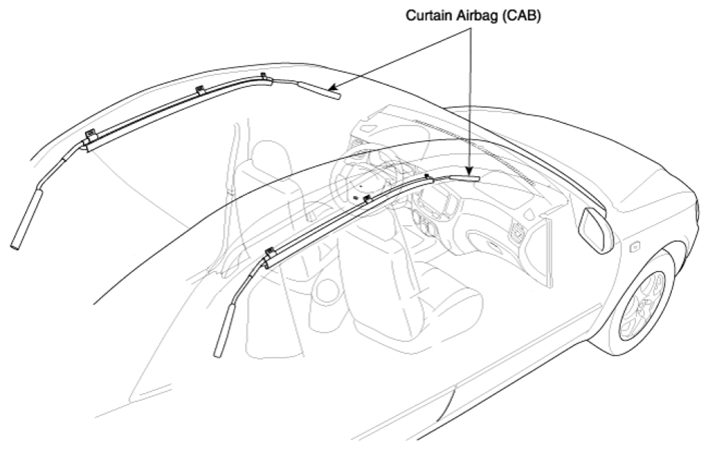

Fig 1: Curtain Airbag Locations

G07389425

Courtesy of KIA MOTORS AMERICA, INC.
