Ignition Coil

  1. Remove the engine cover.
  2. Remove the surge tank. (RH only) Refer to INTAKE AND EXHAUST SYSTEM .
  3. Disconnect the ignition coil connector (A).

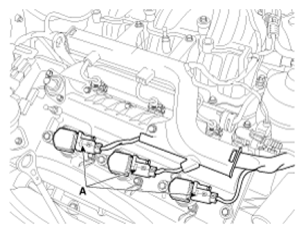

    Fig 1: Ignition Coil Connectors
    G07388889Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 2: Identifying Lock Pin & Clip
    G07388890Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A).
    Fig 3: Ignition Coils
    G07388891Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
