Repair Procedures: Removal

1. Remove the battery and the battery tray. Refer to BATTERY .
2. Remove the under cover (A).

   Under cover installation bolt:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

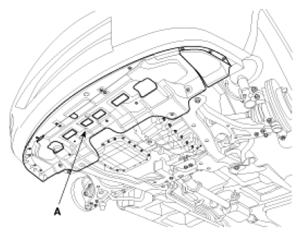

   Fig 1: Under Cover

   Courtesy of KIA MOTORS AMERICA, INC.
3. Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. Refer to AUTOMATIC TRANSAXLE SYSTEM .
4. Remove the valve body cover (A) and eyebolt (B).

   Tightening torque:

   1. 12.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.8 lb-ft)
   2. 34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.6 lb-ft)
   CAUTION: Use new eyebolt gasket.
   NOTE: Remove installation bolts in the engine room first and then remove others under the vehicle.
   Fig 2: Valve Body Cover & Eyebolt

   Courtesy of KIA MOTORS AMERICA, INC.
5. Remove the plate and the detent spring (A) after removing the bolt.

   Tightening torque:

   24.5 ~ 35.3 N.m (2.5 ~ 3.6 kgf.m, 18.1 ~ 26.0 lb-ft)

   Fig 3: Detent Spring

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove the bolt (3 ea) after disconnecting the solenoid valve (B) connector and the oil temperature sensor connector (A).

   Tightening torque:

   9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

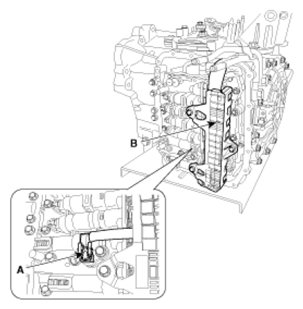

   Fig 4: Identifying Oil Temperature Sensor Connector

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove the valve body assembly (A).

Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Valve Body Assembly

Courtesy of KIA MOTORS AMERICA, INC.
