Component Inspection

Check auto cruise switch

IG "OFF" and disconnect Cruise switch connector.
Measure resistance between signal and ground terminals of Cruise switch connector with 'RESUME' switch depressed. (Component side)

Measure resistance between signal and ground terminals of Cruise remocon connector with each switch depressed. (Component side)

Specification :

RESISTANCE SPECIFICATION

Item	Resistance (Ω)
ON/OFF switch	3.9 kΩ ± 5%
SET switch	220 Ω ± 5%
RESUME switch	910 Ω ± 5%
CANCEL switch	0 Ω ± 5%

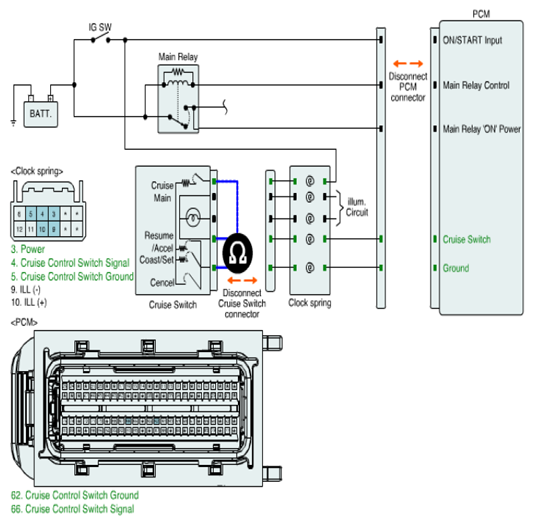

Fig 1: Measuring Resistance Between Signal & Ground Terminals Of Cruise Remocon/Switch Connectors With Switches Depressed

Courtesy of KIA MOTORS AMERICA, INC.

Is the measured resistance within specification?
YES
- Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE: There is a memory reset function on GDS that can erase optional parts automatically detected and memorized by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others
NO
- Substitute with a known - good auto cruise switch and check for proper operation. If the problem is corrected, replace auto cruise switch and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
