Component Inspection
- Check OTS resistance
- IG "OFF" and disconnect OTS connector.

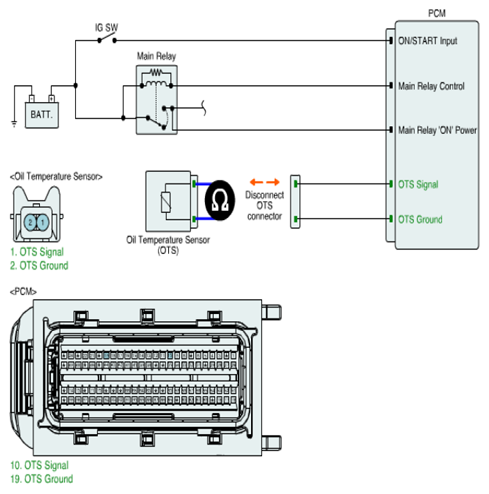

- Measure resistance between signal and ground terminals of OTS connector after checking out the temperature of EOTS with GDS. (Component Side)
Specification:
RESISTANCE SPECIFICATIONTemperature (°C/°F) Resistance (kΩ) -40°C 52.15kΩ -20°C 16.52kΩ 0°C 6.0kΩ 20°C 2.45kΩ 40°C 1.11kΩ 60°C 0.54kΩ 80°C 0.29kΩ - Is the measured resistance within specification?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
