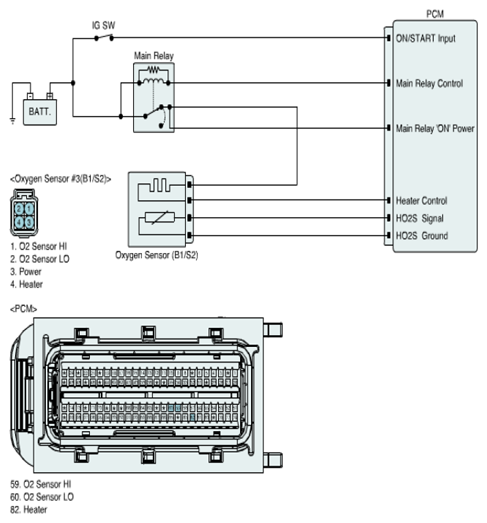

Home >> Kia >> 2012 >> Sedona EX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) >> DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor2) >> General Information >> Diagnostic Circuit Diagram
