Removal and Installation

Tightening torque:

(-) terminal :

4.0 ~ 6.0 N.m (0.4 ~ 0.6 kgf.m, 3.0 ~ 4.4 lb-ft)

(+) terminal :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Clamp nut :

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

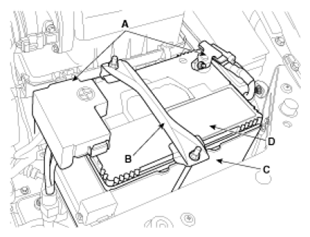

Fig 1: Terminals, Battery Clamp & Battery Insulation Pad

Courtesy of KIA MOTORS AMERICA, INC.

1. Disconnect the breather hose (A) and the BARO (barometric pressure) sensor connector (B).
2. Disconnect the air intake hose and then remove the air cleaner assembly (C).

Tightening torque:

Hose clamp bolt:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

Air cleaner assembly:

7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

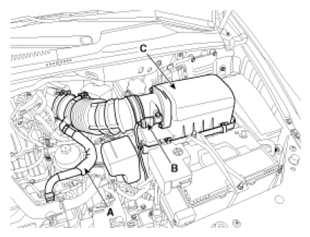

Fig 2: Breather Hose, BARO Sensor Connector & Air Cleaner Assembly

Courtesy of KIA MOTORS AMERICA, INC.

Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

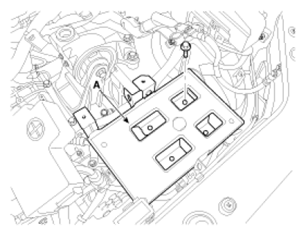

Fig 3: Battery Tray

Courtesy of KIA MOTORS AMERICA, INC.
