Overhead Console Replacement

  1. Loosen the overhead console mounting screws, remove the overhead console assembly (A).
  2. Disconnect the connector (B).

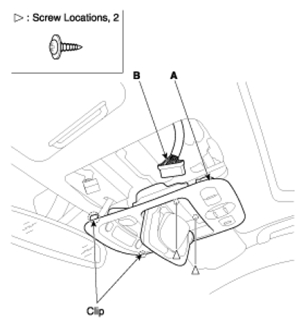

    Fig 1: Overhead Console Assembly & Connector
    G07396020Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse the removal.
