Glove Box Replacement

Disconnect the damper (B) from the glove box (A).

Fig 1: Identifying Glove Box Damper
Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box (A) from the lift (B).

Fig 2: Removing Glove Box From Lift
Courtesy of KIA MOTORS AMERICA, INC.

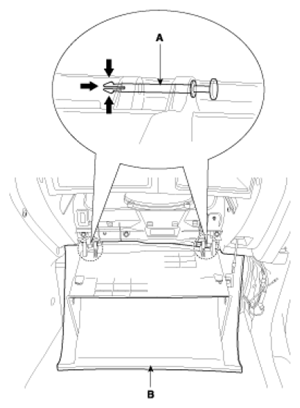

Disconnect the pin (A), then remove the glove box (B).

Fig 3: Removing Glove Box Pin
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
