Repair Procedures: Inspection: Notes

Check the power sliding door control module input/output value by using the diagnostic tool.
When checking the latch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

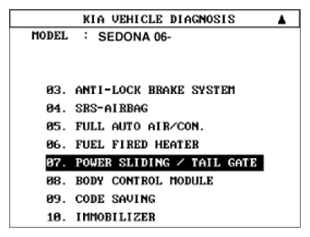

Fig 1: Scantool Display - Power Sliding/Tail Gate
Courtesy of KIA MOTORS AMERICA, INC.
Select the "POWER SLIDING DOOR".

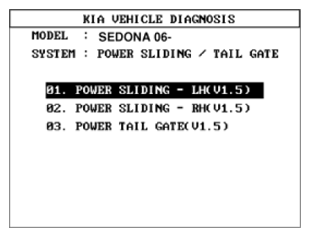

Fig 2: Scantool Display - Power Sliding Door
Courtesy of KIA MOTORS AMERICA, INC.
Select the sensor output. And then check the unlatch feedback (Unlocked state) voltage while operating power sliding door in power mode.

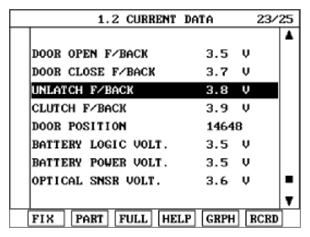

Fig 3: Scantool Display - Unlatch Feedback
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.
If there is no change in voltage, change the latch.
