Repair Procedures: Inspection

Detent switch detect the latch position within latch assembly.

Fig 1: Detent Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check the power sliding door control module input/output value by using the diagnostic tool.
When checking the detent switch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

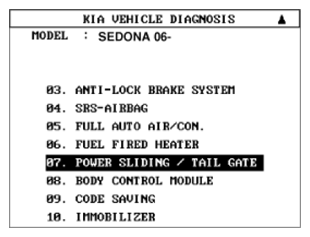

Fig 2: Scantool Display - Power Sliding/Tail Gate
Courtesy of KIA MOTORS AMERICA, INC.
Select the "POWER SLIDING DOOR".

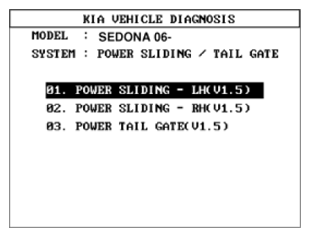

Fig 3: Scantool Display - Power Sliding Door
Courtesy of KIA MOTORS AMERICA, INC.
Select the detent sensor output. And then check the detent switch output with operating power sliding door.

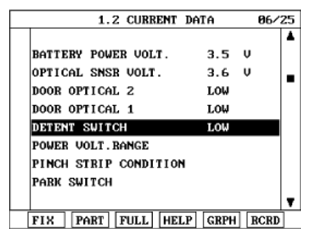

Fig 4: Scantool Display - Detent Switch
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.
If there is no change in output, change the latch assembly.
