Repair procedures: Adjustment

In neutral position, disjoin select cable (A) from shift lever assembly pin (B).

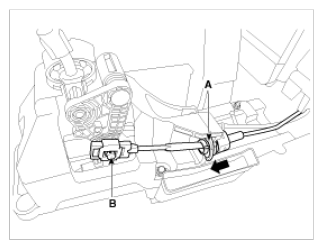

Fig 1: Disconnecting Select Cable From Shift Lever Assembly Pin
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect select adjuster (A) to an arrow.

Fig 2: Locating Select Adjuster
Courtesy of KIA MOTORS AMERICA, INC.
Shift to the 3th gear position.
Adjustment adjuster (B) on select cable (A) as rolling from side to side.

Fig 3: Identifying Adjuster And Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Insert on free load and press the adjuster.
After shifting 2nd gear, checking the left select gap about 1mm(if not, loop no, 1~5)
NOTE: If there are still gate blocking in spite of re-adjustment, shift lever assembly stopper stoke must be checked.
In neutral position, join by clip (A).

Fig 4: Locating Joint Clip

Courtesy of KIA MOTORS AMERICA, INC.
