Crash Pad Side Cover Replacement

CAUTION:

A plastic trim tool is recommended, but if prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to bend or scratch the trim and panels.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad side cover (A).
[Driver's]

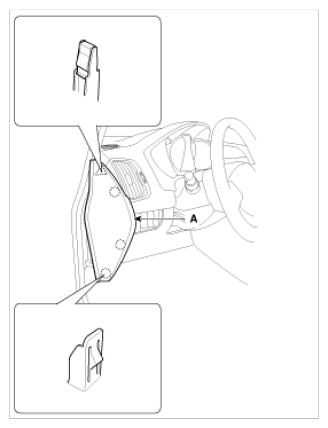

Fig 1: Identifying Crash Pad Side Cover (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

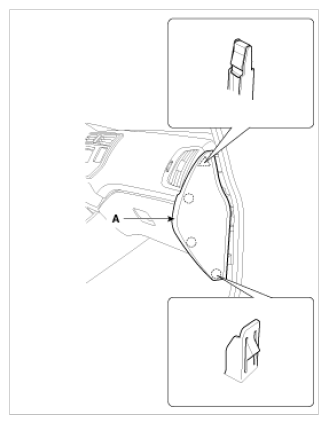

Fig 2: Identifying Crash Pad Side Cover (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
