Component Inspection

Check internal errors of CAN communication units.

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Disconnect CAN communication units one by one and monitor DTC to find the cause.

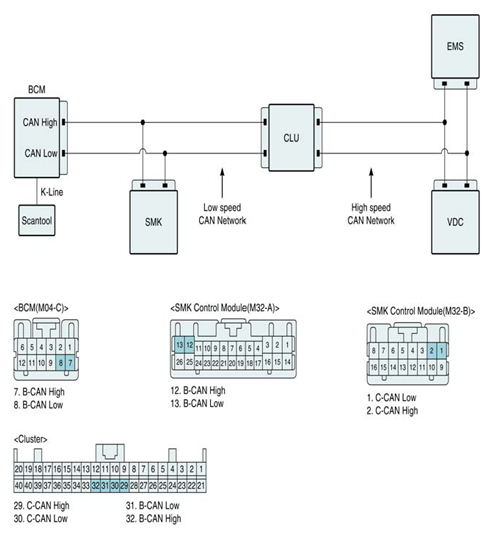

   Fig 1: BCM And SMK - Circuit Diagram

   Courtesy of KIA MOTORS AMERICA, INC.

   *CAN communication units: BCM(Body Control Module), CLU(Cluster), SMK(Smart Key).

5. Is the code erased?

   YES

   Substitute with a known - good unit and check for proper operation.

   If the problem is corrected, replace the unit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
