Repair Procedures: Installation

  1. Installation is the reverse of removal.
    CAUTION: After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
    NOTE:
    • The gasket of the valve body gasket (A) use new one.

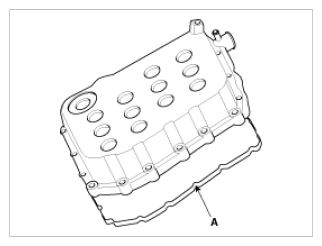

      Fig 1: Identifying Valve Body Gasket
      G08321706Courtesy of KIA MOTORS AMERICA, INC.
    • Adding automatic transaxle fluid. (Refer to  6 .
    • Perform TCM learning after replacing the valve body to prevent slow transaxle response, jerky acceleration and jerky startup. (Refer to TCM LEARNING .
