Valve Body Flow

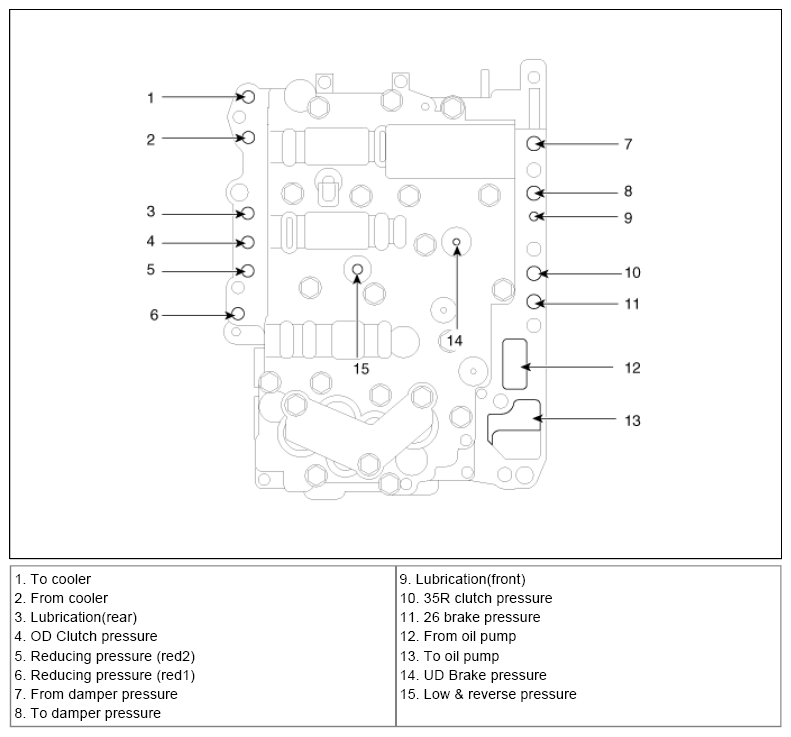

Fig 1: Identifying Valve Body Flow Components

G08321700

Courtesy of KIA MOTORS AMERICA, INC.
