Special Service Tools
| Tool (Number and Name) | Illustration | Use |
|---|---|---|
| 09200-38001, 3N000 (Beam) 09200-1P100, 4X000 (Adapter) 09200-2S200 (Supporter) Engine support assembly |
Removal and installation of the transaxle. Use assembling 09200-1P100, 4X000 (Adapter) and 09200-2S200 (Supporter) on 09200-38001, 3N000 (Beam). |
|
| 09200-3N000 Engine support fixture (Beam) |
Removal and installation of the transaxle. Use this adapter (SST No.: 09200-1P100, 4X000) with the supporter (SST No.: 09200-2S200). Permit operating with 09200-38001. |
|
| 09200-1P100 Engine support fixture (Adapter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/09200-3N000) with the supporter (SST No.: 09200-2S200) and adapter (SST No.: 09200-4X000) |
|
| 09200-4X000 Engine support fixture (Adapter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/3N000) with the supporter (SST No.: 09200-2S200) and adapter (SST No.: 09200-1P100) |
|
| 09200-2S200 Engine support fixture (Supporter) |
Removal and installation of the transaxle. Use this beam (SST No.: 09200-38001/09200-3N000) with the adapter (SST No.: 09200-1P100, 4X000) |
|
| 09452-26100 Oil seal installer |
Installation of transaxle case oil seal. [Using with handle (SST No.:09231-H1100)] | |
| 09231-H1100 Bar |

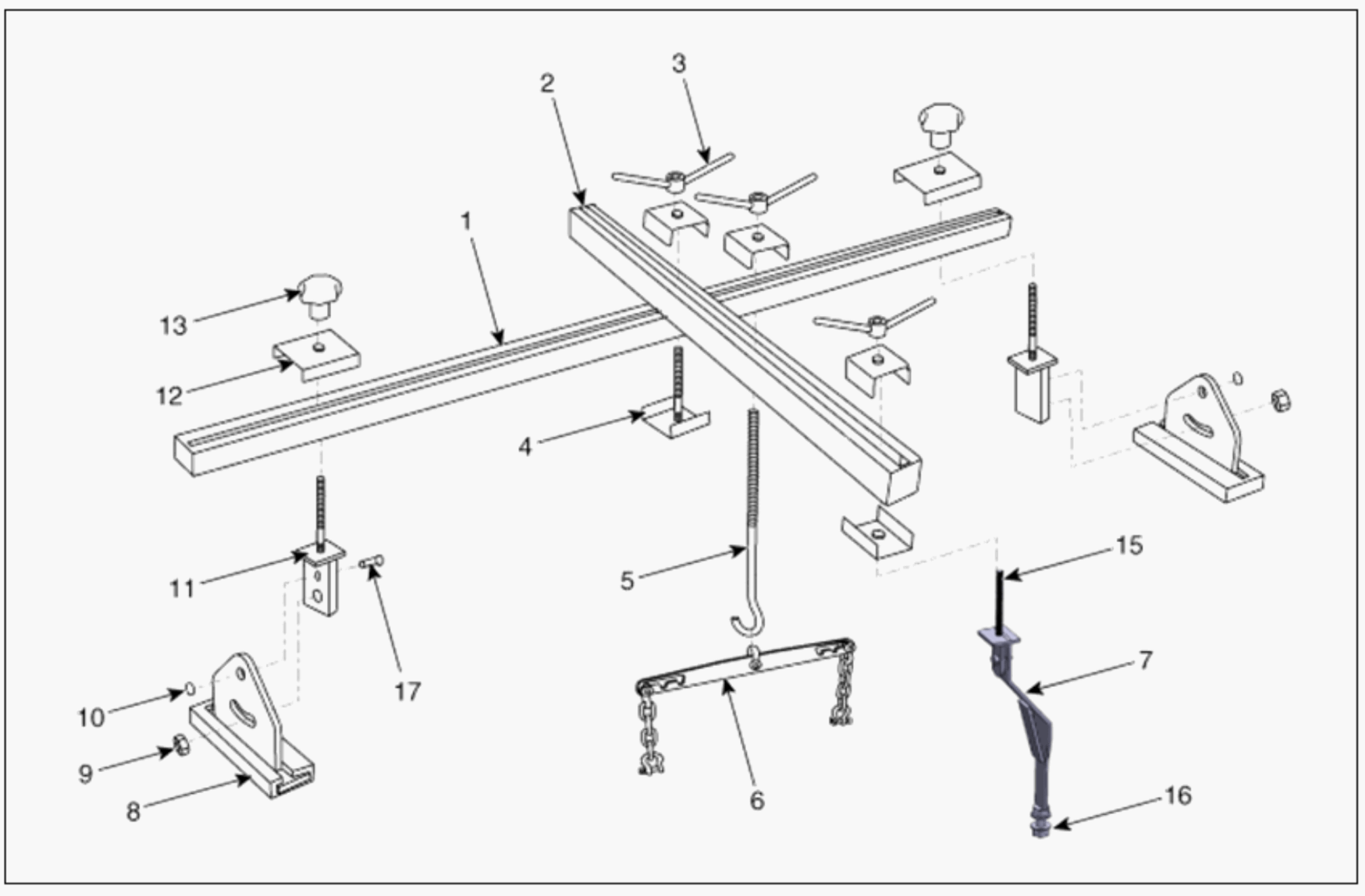

Installation of transaxle case oil seal. [Using with oil seal installer (SST No.:09452-26100)] * Engine support fixture special tool assembly drawing |
| Engine Support Fixture Parts Call Out | |
|---|---|
| 1. 09200-3N000(Main bar) | 10. 09200-3N000(Snap ring) |
| 2. 09200-3N000(Sub bar) | 11. 09200-3N000(Sub fixture) |
| 3. 09200-3N000(Handle) | 12. 09200-3N000(Stopper) |
| 4. 09200-3N000(Stopper) | 13. 09200-3N000(Nut) |
| 5. 09200-3N000(Bolt-1) | 14. 09200-2S100(Spacer) |
| 6. 09200-4X000 (Adapter) | 15. 09200-1P100(Sub fixture) |
| 7. 09200-1P100(Supporter) | 16. 09200-1P100(Nut) |
| 8. 09200-2S200(Supporter) | 17. 09200-3N000(Pin) |
| 9. 09200-3N000(Nut) | |
