Repair procedures: Removal

Open the fuel filler door, and then remove the filler-neck assembly mounting screws (A).

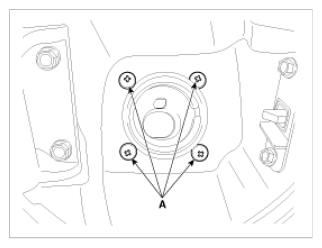

Fig 1: Identifying Filler-Neck Assembly Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel filler hose (A) and the vapor hose (B).

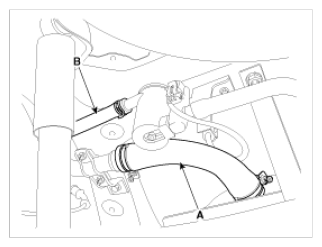

Fig 2: Identifying Fuel Filler And Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolt (A).

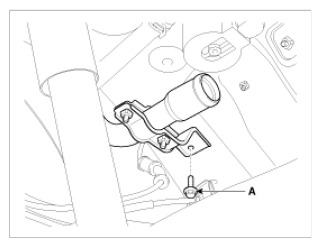

Fig 3: Identifying Filler-Neck Assembly Bracket Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
