Components and Components Location: Components

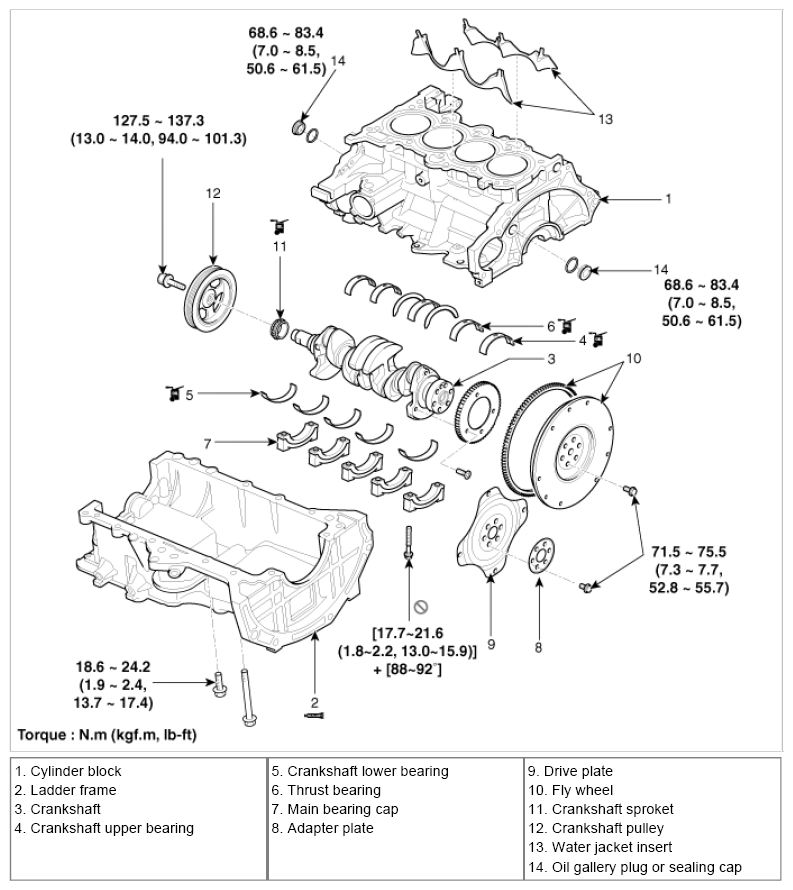

Fig 1: Cylinder Block Replacement Components With Torque Specifications
G08321088Courtesy of KIA MOTORS AMERICA, INC.

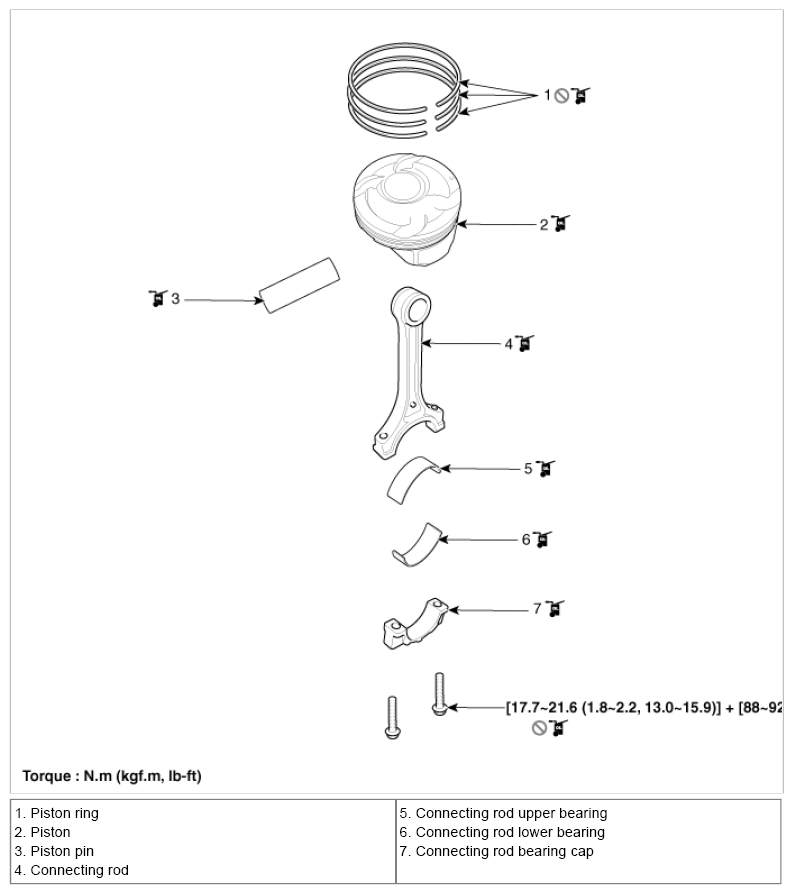

Fig 2: Piston, Connecting Rod And Related Replacement Components With Torque Specifications
G08321089Courtesy of KIA MOTORS AMERICA, INC.
