Rio LX, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Engine Oil
>>
Flow Diagram
>>
Engine Oil Flow Diagram
Engine Oil Flow Diagram

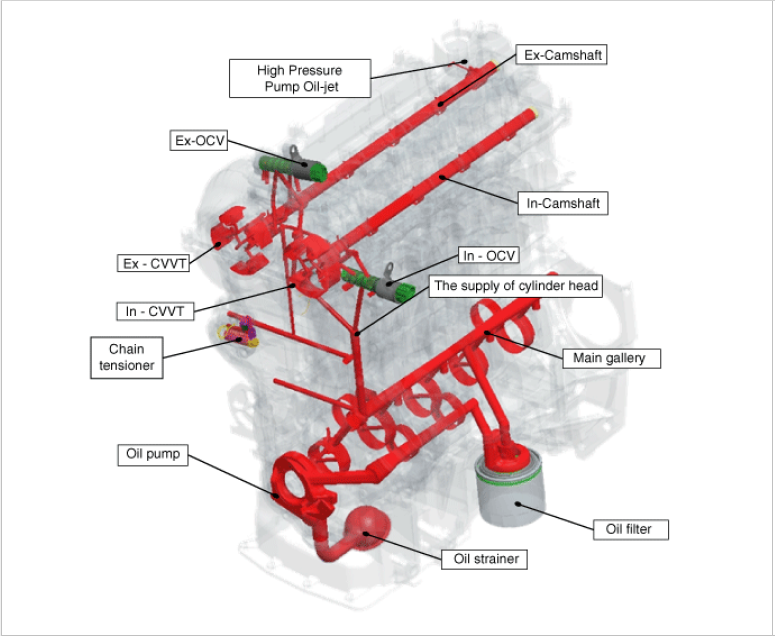

Fig 1: Engine Oil Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.

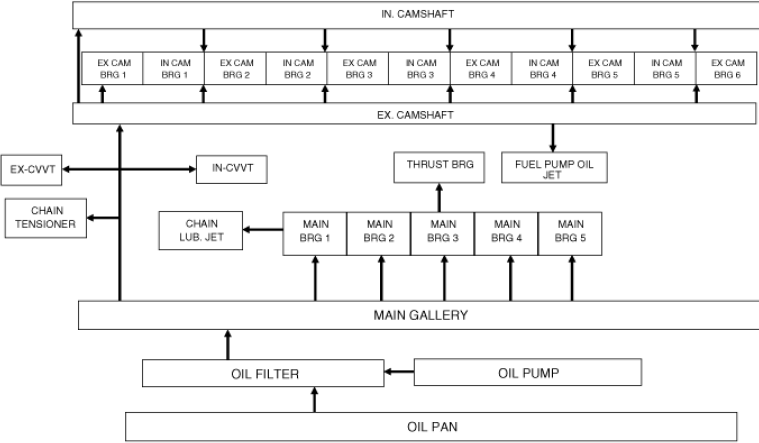

Fig 2: Engine Oil Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
