Rio LX, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emission Control System - General Information
>>
Schematic Diagram
Schematic Diagram

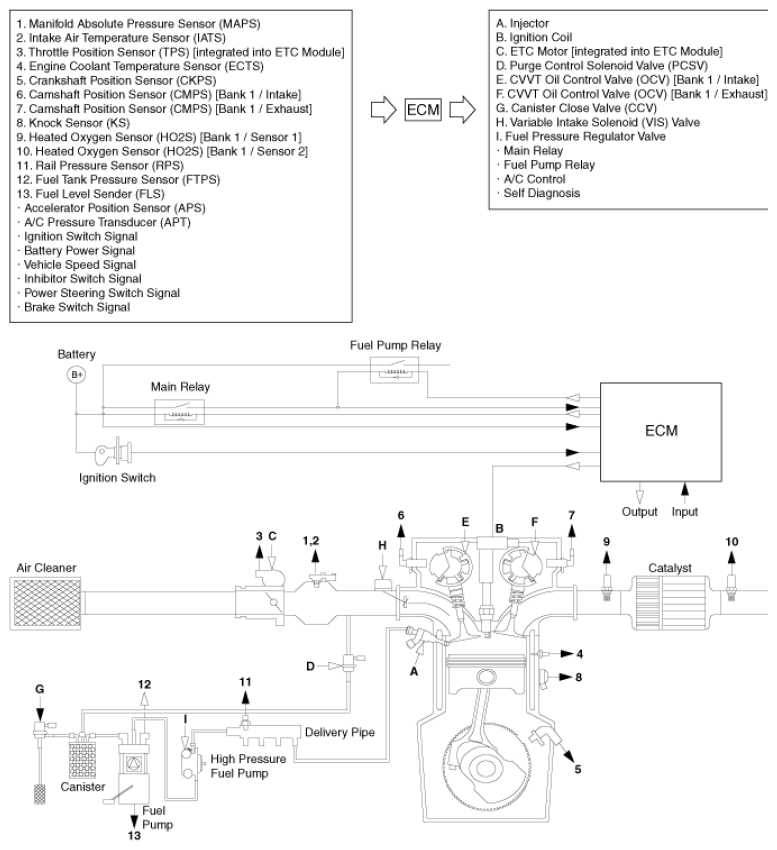

Fig 1: Emission Control System Schematics
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
