Home >> Kia >> 2012 >> Rio LX, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Troubleshooting

Charging System: Battery: Troubleshooting

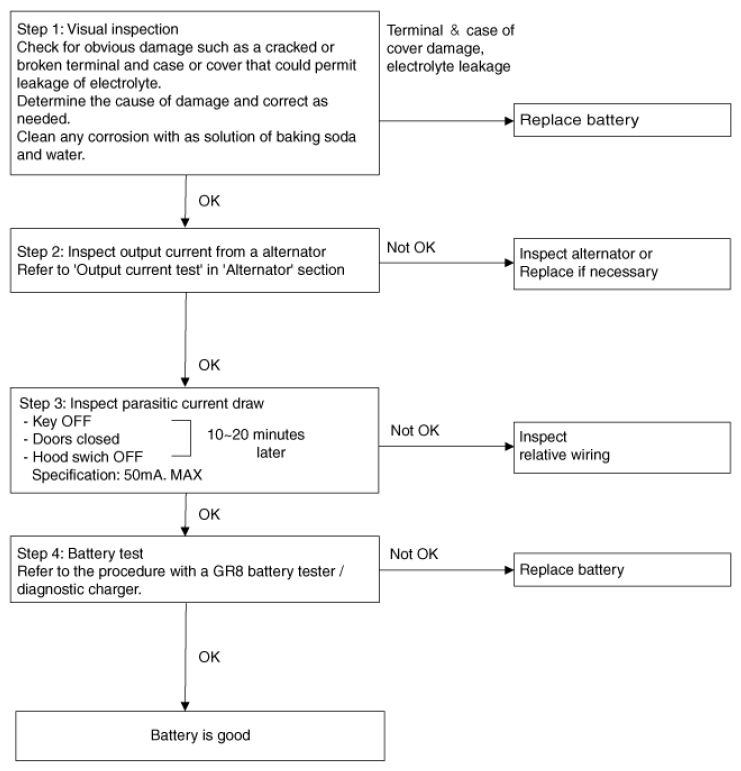

Fig 1: Battery Troubleshooting Work Flow Chart

G08321256

Courtesy of KIA MOTORS AMERICA, INC.
