Repair procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector.
  3. Remove the battery sensor cable after removing the bolts (A).

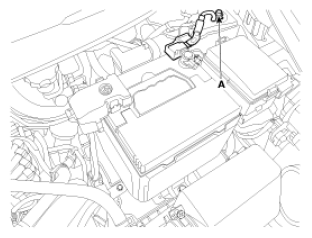

    Fig 1: Identifying Battery Sensor Cable Mounting Bolt
    G08321257Courtesy of KIA MOTORS AMERICA, INC.
